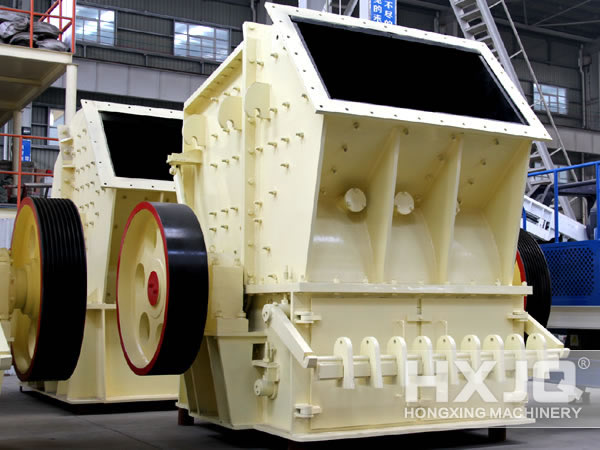

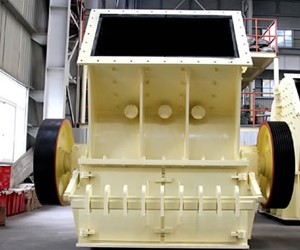

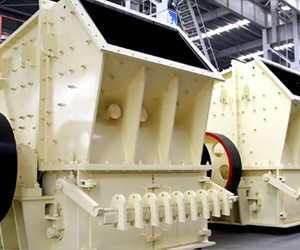

Single-stage Hammer crusher
Single-stage Hammer crusher
Advantages of single-stage hammer crusher are as follows:Big reduction ratio: Maximum feeding size is 1.3-1.5m; 3-150mm of discharging size.High fineness of discharging size: favorable shape with aggregate, the powdery material is no more than 20%.
Click here to get this product and parts' price.
Big reduction ratio,Simple process
- Features
- Technical data
Advantages of single-stage hammer crusher are as follows:
Big reduction ratio: Maximum feeding size is 1.3-1.5m; 3-150mm of discharging size.
High fineness of discharging size: favorable shape with aggregate, the powdery material is no more than 20%.
Simple process: the two or three stage crushing is reduced into single stage.
Economical: small capacity of matched motor greatly reduces the production cost.
Technical parameters of Single-stage hammer crusher
Model | Type | Rotor diameter(mm) | Feeding size(mm) | Product Size(mm) | Capacity(t/h) | Power(kw) |
DPC140 | Single rotor | 1400 | ≤800 | 5-15 | 45-140 | 160-220 |
DPC160 | 1600 | ≤1000 | 60-240 | 280-355 | ||
DPC200 | 2000 | ≤1250 | 120-420 | 500-630 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
