Disk grain making machine
Disk grain making machine

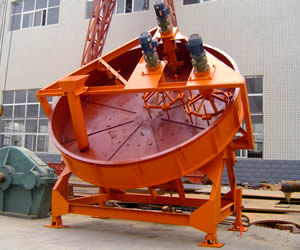

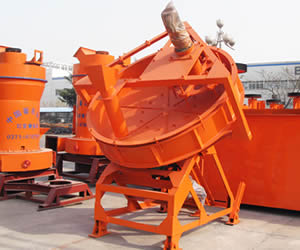

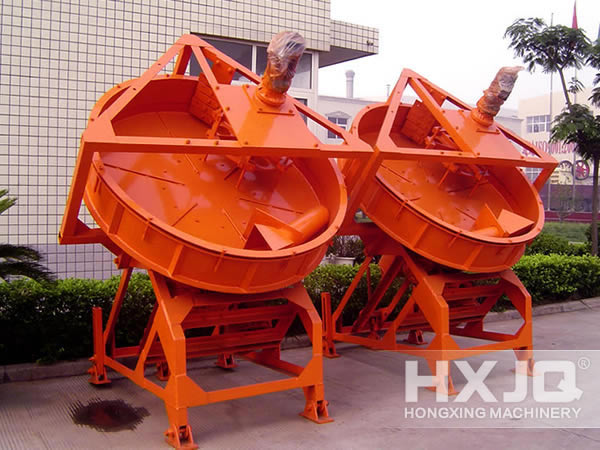

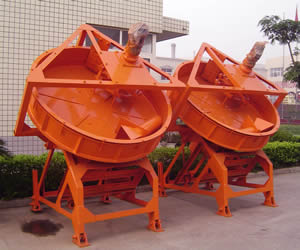

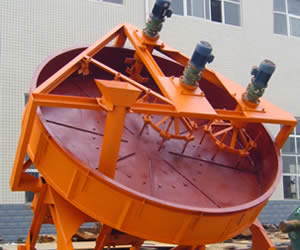

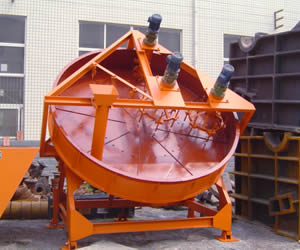

Disk grain making machine is a cubage feeding equipment. It supplies materials to the next procedure evenly and continuously. Besides, it can bear relatively higher pressure. As a fine material feeder, it is suitable for non-cohesive materials like coal powder, cement, clinker, limestone, shale, gangue and clay. It is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding.
Click here to get this product and parts' price.
Simple structure, easy maintenance
- Features
- Technical data
Disk grain making machine is a cubage feeding equipment. It supplies materials to the next procedure evenly and continuously. Besides, it can bear relatively higher pressure. As a fine material feeder, it is suitable for non-cohesive materials like coal powder, cement, clinker, limestone, shale, gangue and clay. It is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding.
.jpg)
Advantages of this machine are simple structure, easy operation and excellent performance. This machine is suitable for conveying materials with granularity less than 50mm, while it is not suitable for cohesive materials, easy-to-flow or hard-to-flow materials.
Technical Parameters of Disk Grain Making Machine
|
Specification
（m） |
Rotation speed
(r/min) |
Production capacity
(t/h) |
Motor
(kw) |
Adjustment range of obliquity
|
Dimensions
(m) |
Total weight
(t) |
|
Φ2.2
|
14.25
|
4-8
|
7.5
|
35-55
|
2.8×2.75×2.58
|
3.2
|
|
Φ2.5
|
11.81
|
5-10
|
7.5
|
35-55
|
3.2×2.3×3
|
3.6
|
|
Φ2.8
|
11.21
|
12-16
|
7.5
|
35-55
|
3.4×2.6×3.1
|
4.1
|
|
Φ3.0
|
11.3
|
15-18
|
11
|
35-55
|
3.7×2.7×3.3
|
4.8
|
|
Φ3.2
|
9.6
|
15-20
|
11
|
35-55
|
3.9×2.7×3.4
|
5.6
|
|
Φ3.6
|
9.1
|
18-24
|
15
|
35-55
|
4.3×3.1×4.0
|
7.2
|
Note: If you're interested in the product, please submit your requirements and contacts and then we will contact you in two days. We promise that all your informations won't be leaked to anyone.
