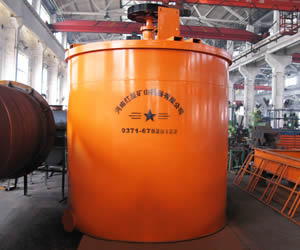

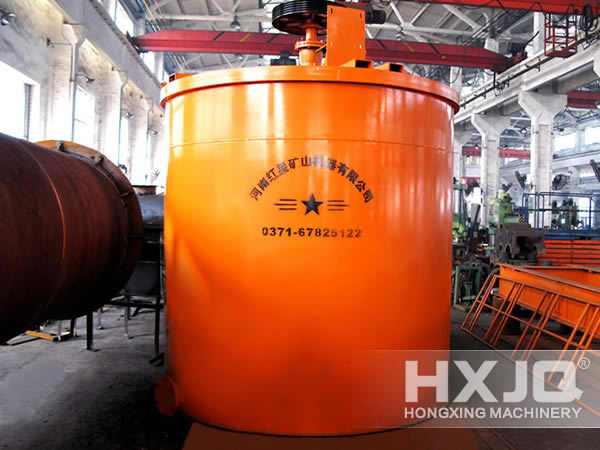

Mixer
This machine rotates with the V-belt which drives the impeller. It is suitable for ore dressing industry and chemical industry. It has the following advantages: 1) to make medicine and mash mix evenly; 2) to increase the medicine effect time; 3) to strengthen the medicine quantity.
Click here to get Mixer and parts' price.
Easy maintenance and reliable operation.
- Features
- Technical data
Introduction
This machine rotates with the V-belt which drives the impeller. It is suitable for ore dressing industry and chemical industry. It has the following advantages:
1) to make medicine and mash mix evenly;
2) to increase the medicine effect time;
3) to strengthen the medicine quantity.
.jpg)
Operating instruction
Before the machine starts, the bolts on the machine body shall be fixed firmly. Turn the axis to check the flexibility. And then the machine can start. The rest instruction is the same to that of flotation machine.
Technical Parameters of Mixer
| Category | Specification Model |
Dimensions | Effective cubage(m³) |
Rotate speed（r/min） |
Motor power (kw) |
Dimensions （L×W×H） （mm） |
Total weight (kg) |
|
| Diameter （mm） |
Height （mm） |
|||||||
| Agitating tank |
XB-10×10 | 1000 | 1000 | 0.58 | 390 | 1.5 | 1130×1130×1521 | 1050 |
| XB-12×12 | 1200 | 1200 | 1.18 | 390 | 2.2 | 1130×1330×1721 | 1160 | |
| XB-15×15 | 1500 | 1500 | 2.2 | 280 | 3.0 | 1750×1640×2190 | 1270 | |
| XB-20×20 | 2000 | 2000 | 5.6 | 210 | 5.5 | 2380×2160×2850 | 1700 | |
| XB-25×25 | 2500 | 2500 | 11.2 | 190 | 7.5 | 2990×2720×3540 | 3500 | |
| XB-30×30 | 3000 | 3000 | 19 | 140 | 18.5 | 4030×3270×3010 | 5200 | |
| XB-35×35 | 3500 | 3500 | 29 | 230 | 30 | 3920×3740×4970 | 6630 | |
| XB-40×40 | 4000 | 4000 | 45 | 210 | 37 | 4520×4320×5570 | 7830 | |
| Lifting type |
XBT-10×15 | 1000 | 1500 | 1 | 510 | 2.2 | 1130×1130×2070 | 1250 |
| XBT-15×20 | 1500 | 2000 | 2.9 | 400 | 4 | 1636×1768×2785 | 1677 | |
| XBT-20×20 | 2000 | 2000 | 5.6 | 312 | 11 | 2180×2220×3015 | 3100 | |
| High- efficiency leaching tank |
XF-20×20 | 2000 | 2000 | 7.07 | 82.5 | 1.5 | 2032×2032×3595 | 2400 |
| XF-25×30 | 2500 | 3000 | 13.5 | 57.6 | 2.2 | 2532×2532×4152 | 3670 | |
| XF-30×30 | 3000 | 3000 | 22.97 | 50.0 | 2.2 | 3180×3180×4673 | 5340 | |
| XF-35×40 | 3500 | 4000 | 35.6 | 41.0 | 4.0 | 3685×3685×5314 | 7140 | |
| XF-40×45 | 4000 | 4500 | 52.78 | 33.5 | 4.0 | 4185×4185×5814 | 9300 | |
| XF-45×50 | 4500 | 5000 | 74.75 | 33.5 | 5.5 | 4685×4685×6466 | 10500 | |
| XF-50×56 | 5000 | 5600 | 102.1 | 30.6 | 5.5 | 5185×5185×6975 | 12300 | |
| XF-55×60 | 5500 | 6000 | 135.4 | 24.4 | 7.5 | 5670×5670×7569 | 13500 | |
