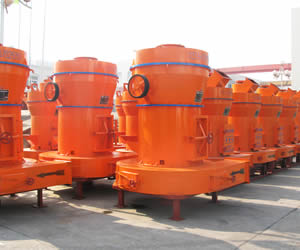

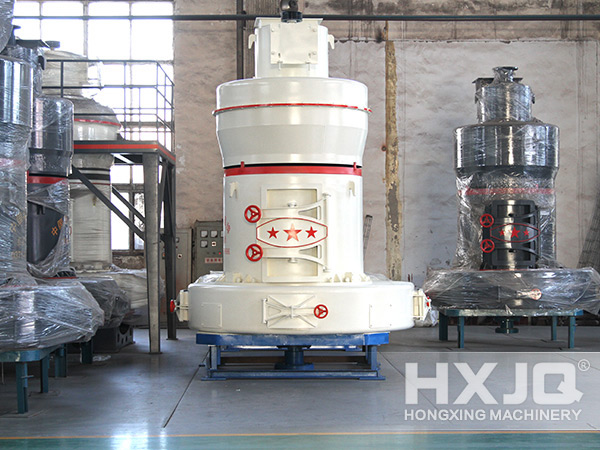

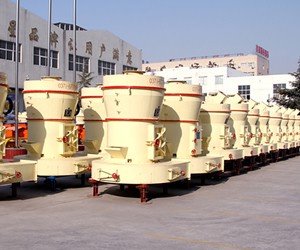

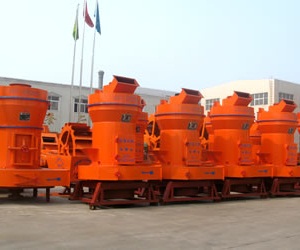

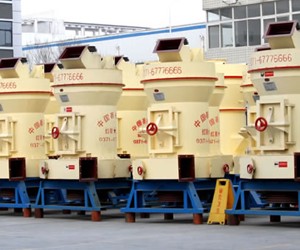

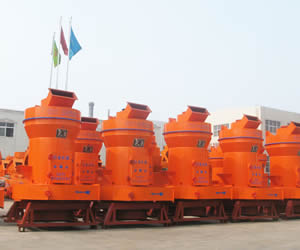

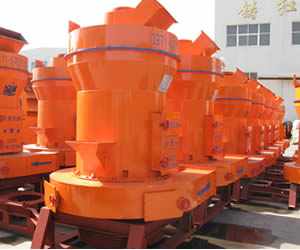

High pressure Micro-powder Grinder

High pressure Micro-powder Grinder is used for grinding the barite, limestone, kaolin, ceramics and slag, etc, with the hardness below 9.3 of Mohs and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgical industrial, chemical engineering and building material for high fine powder generation and processing. The product size is adjustable in the range of 80-425 (1000 the finest) meshes. It is possible to produce 30-80 mesh coarse powder through special device in the machine.

Work process:

In the main frame,a 100-1500 kg powered pressure spring is fixed to the roller suspender. After the grinder is put into effect, the roller rotates around the main shaft, and rolls closely against the ring pressed by the high pressure spring and centrifugal force. And its rolling pressure ration is 1.2 times higher than that of the Raymond grinder under the same power condition and the production output is raised to substantial degree. When a certain degree of wear of roller and ring is effected, it is recommended to adjust the length of the spring to maintain the constant pressure between the roller and the ring. As a result, the stable output and fineness can be ensured.

Technical parameters of High pressure micro-powder mill
