Belt Conveyor
Belt Conveyor

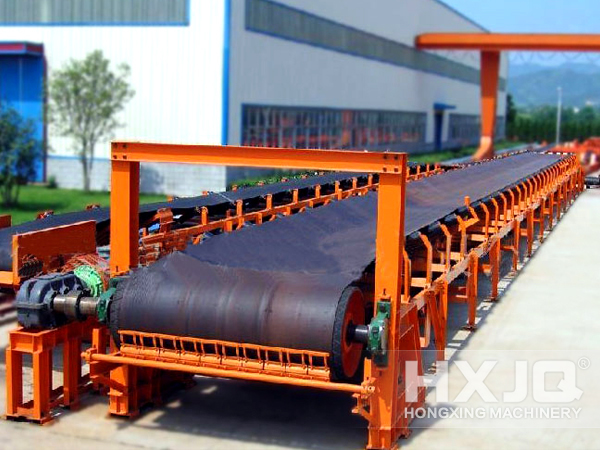

The belt conveyor manufactured by our company has the advantages of big conveying capacity, simple structure, convenient maintenance and standardized parts; it is widely used in industries of mine, metallurgy and coal to convey bulky materials and finished products.
Click here to get Belt Conveyor and parts' price.
used in industries of mine, metallurgy and coal
- Features
- Technical data
The belt conveyor manufactured by our company has the advantages of big conveying capacity, simple structure, convenient maintenance and standardized parts; it is widely used in industries of mine, metallurgy and coal to convey bulky materials and finished products. According to different technical requirements, it can convey materials singly or coordinately. Working temperature is between -20℃ and +40℃ and the temperature of conveyed material is under 50℃.
.jpg)
.jpg)
Technical parameters of belt conveyor
| Belt width (mm) |
Conveying length(m) Power(kw) |
Conveying speed (m/s) |
Conveying capacity (t/h) |
||
| 400 | ≤10 3 |
12-15 3-4 |
15-30 4-7.5 |
1.25-2.0 | 30-60 |
| 500 | ≤10 3 |
12-15 4-5.5 |
15-30 5.5-7.5 |
1.25-2.0 | 40-80 |
| 650 | ≤10 4 |
12-15 7.5 |
15-30 7.5-11 |
1.25-2.0 | 80-120 |
| 800 | ≤10 4 |
12-15 7.5 |
15-30 7.5-15 |
1.25-2.0 | 120-200 |
| 1000 | ≤10 5.5 |
10-20 7.5-11 |
20-40 11-22 |
1.25-2.0 | 200-320 |
| 1200 | ≤10 7.5 |
10-20 7.5-15 |
20-40 15-30 |
1.25-2.0 | 290-480 |
| 1400 | ≤10 11 |
10-20 15-22 |
20-40 22-45 |
1.25-2.0 | 400-680 |
| 1600 | ≤10 15 |
10-20 22-30 |
20-50 30-75 |
1.25-2.0 | 600-1080 |
| 1800 | ≤10 18.5 |
10-20 30-45 |
20-50 45-110 |
1.0-2.0 | 800-1500 |
| 2000 | ≤10 22 |
10-20 45-55 |
20-50 55-132 |
1.0-2.0 | 1000-2000 |
| 2400 | ≤10 30 |
10-20 55-75 |
20-50 75-185 |
1.0-2.0 | 1500-3000 |
Accessory:
1. The conveying quantity is worked out by the following conditions: material density is between 1.0t/m3-1.6t/m3; conveyor obliquity is less than 18o and the material stockpile angle is 30o.
2. Density of material is less than 2.5t/m3.
3. The conveying length is not restricted to the form; different length can be manufactured according to customers demands.
