Dryer
Dryer machine, which is also known as rotary dryer, limestone dryer or cement rotating dryer, is the key equipment to dry different materials with humidity or granularity in various fields. According to its shape, it is also called drum dryer.
Click here to get Dryer and parts' price.
Reasonable design,High-efficiency
- Features
- Technical data
A Brief Introduction to Dryer Machine
Dryer machine which is also known as rotary dryer is the key equipment used for drying different materials with humidity or granularity in various fields. According to its shape, it is also called drum dryer. China is one of the major countries manufacturing dryer and is also the best-selling manufacturer in the world. Henan Hongxing Mining Machinery Co., Ltd is one of the best sellers in those companies manufacturing dryer in China. As the most important manufacturing base of mining machines,China dryers and rotary dryers are the most popular products in the market no matter whether they are at home and abroad.

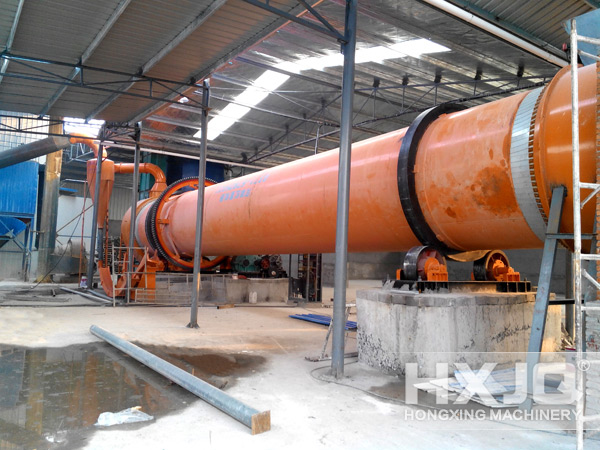

.jpg)
Application of Dryer Machine
Rotary dryers can be widely used to dry various materials, such as metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc, and it is quite easy to be operated and the workers can handle with them in a short time. As a professional manufacturer with many years’ experiences on mining machinery, Henan Hongxing Mining Machinery Co., Ltd can send our technicians to the jobsites of the customers to train the worker and to guide the operation on those kinds of dryer machines produced by our company, such as rotary dryer, limestone dryer, drum dryer, cement rotating dryer and so on. We won’t let every customer down on our products and our services.
Working Principle

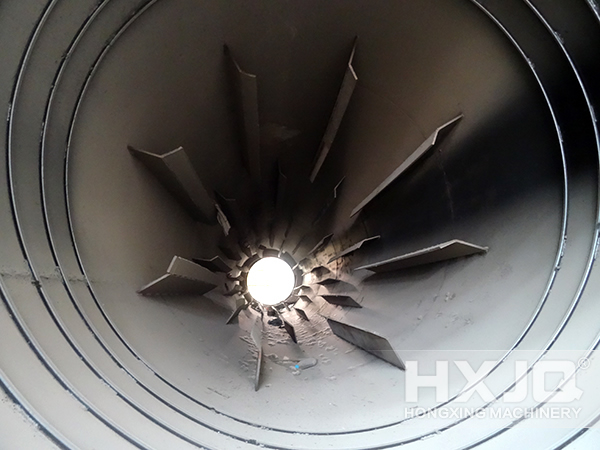

Materials are sent to the hopper of rotary dryer by belt conveyor or bucket elevator; materials enter the barrel installed with slope to horizontal line from the higher side; hot air enters the barrel from the lower side, then materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates; lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely in order to improve the efficiency of the production
Advantages
1. Reasonable design;
2. High-efficiency;
3. Low consumption and energy saving;
4. Easy to maintain;
5. Easy to operate;
6. Quick deliveries;
7. Solid construction;
8. Novel design;
9. Customized for every application;
10. Best price on the market.
.jpg)
Technical Parameters of H-Series Rotary Dryer
|
Spec./m
(Dia.×Length） |
Shell Cubage
（m³） |
Capacity
（t/h） |
Installation
Obliquity （%） |
Highest Inlet
Air Temperature （℃） |
Main Motor
（kw) |
Weight
（t） |
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
3～5
|
700～800
|
7.5
|
9
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
3～5
|
700～800
|
7.5
|
11
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
3～5
|
700～800
|
15
|
18.5
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
3～5
|
700～800
|
15
|
19.7
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
3～5
|
700～800
|
15
|
20.5
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
3～5
|
700～800
|
18.5
|
21.5
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
3～5
|
700～800
|
18.5
|
23
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
3～5
|
700～800
|
22
|
33.5
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
3～5
|
700～800
|
22
|
36
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
3～5
|
700～800
|
22
|
38
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
3～5
|
700～800
|
37
|
45
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
3～5
|
700～800
|
37
|
49
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
3～5
|
700～800
|
45
|
54
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
3～5
|
700～800
|
45
|
58
|
|
Φ2.6×24
|
127.4
|
27.2～34.0
|
3～5
|
700～800
|
55
|
73
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
3～5
|
700～800
|
75
|
85
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
3～5
|
700～800
|
75
|
95
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
3～5
|
700～800
|
90
|
110
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
3～5
|
700～800
|
160
|
135
|
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Inside diameter of outer shell （mm） |
Inside diameter of inner shell （mm） |
Shell Length （m） |
Shell cubage （m³） |
Shell obliquity |
Lifting blade form |
Highest inlet air temperature （℃） |
Dimensions （m） |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | ---- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
Note: If you're interested in the product, please submit your requirements and contacts and then we will contact you in two days. We promise that all your informations won't be leaked to anyone.
