Cement mill is used for cement grinding. Cement crusher is applied for cement crushing. In cement production line you need to choose suitable raw material mill and cement crusher.
Easy maintenance and easy operation
- Technical data
Summary of Cement Mill

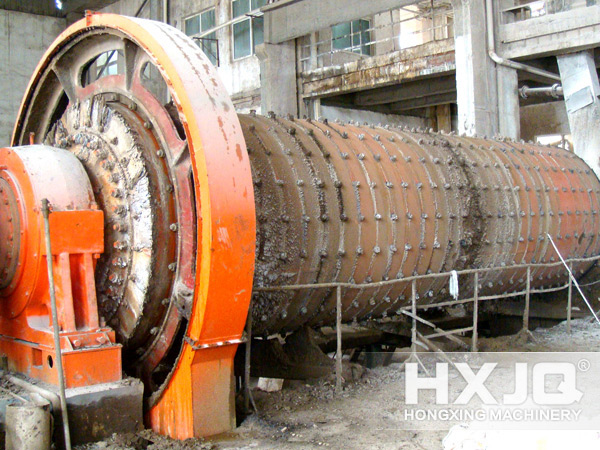

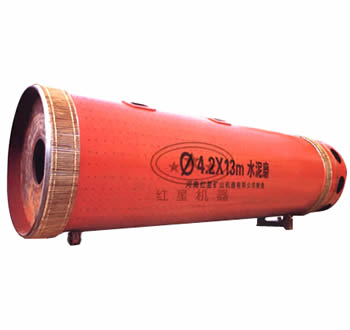

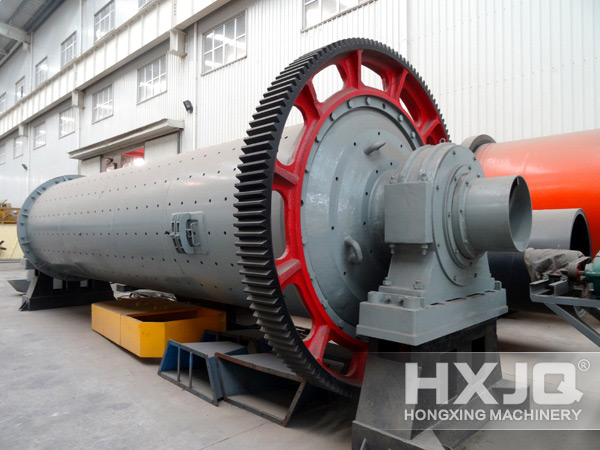

A cement mill is an installation used to grind the clinker component of concrete. Clinker is a hard, nodular material produced by sintering aluminosilicate and limestone in a cement kiln. There are several cement mill types which are able to grind clinker of which the ball mill is the most common. Ball mills consist of cylinders partially filled with large numbers of steel balls which employ their rolling action to crush the raw material when each cylinder is rotated. High pressure roller mills are occasionally used to grind clinker although their use has not yet gained broad acceptance. Cement mill is used for cement grinding. Cement crusher is applied for cement crushing. In cement production line you need to choose suitable raw material mill and cement crusher.
Cement products and raw materials are mainly used in Raw material mill, also used in metallurgy, chemical industry and electric power industry.mining enterprises. They can be used to open stream grinding and be applied to the composition of the powder flow grinding circle. And the China cement mill is of growing kinds. The China cement mills vary from traditional ball mill to new European trapezium grinding mill. Cement crusher includes jaw crusher, cone crusher, impact crusher, etc. In Cement making plant, cement grinding mill and cement crusher play a very important role. They can crush or grind the cement to required fineness for industry application.
According to the uses of cement, they can be divided into general cement, special cement and other cements with some prominent performances, etc, such as expansive cement, low heat cement, colored cement, and white cement. Among these, the general cement is the main silicate cement for general construction work and the special cement is adapted to specific uses of cement, such as dam cement, oil well cement, masonry cement, etc. All in all, cement mill will be used in all these products production,
In a variety of cement, silicate cement is kind of cement with wide application. In interior decoration, this type of cement is commonly used. In addition, white cement and colored cement are also used in the decoration.
Cement Production Process
The whole production process of cement is generally as follows:
Cement Crusher and homogenizing-- Preparation of raw material -- Raw material homogenization -- Preheat decomposition -- The burning of cement clinker -- Cement equipment (Ball Mill or Vertical Roller Mill)-- Cement Packaging
Among all these procedures, we will introduce to you the cement crusher process and cement machinery process in detail. The first step is for cement crusher.
The Advantages of Cement Mill
Our cement mills with domestic advanced level are exported to Vietnam, Indonesia, France, Germany, etc. China cement mills have been honored as famous brand of China Building material in machinery industry, national top brand product, fixed-point production of national building materials, etc. The Cement mill price is also lower than the foreign countries.
Cement mill with adaptability of materials can produce a continuous, broken than large, easy-to-speed grinding fineness of the product characteristics. The cement mill price will also be affected by these factors.
|Product specification(m)||Milling from||Transmission from||Gear box||motor power(kw)||Production capacity(t/h)||Total Weight(t)|
|Model||Speed reduction ratio|
|Φ 1.83*7||Open flow||Brim||ZD60||4.5||245||6.5-8||43.8|
|Φ 2.2*7.5||Circle flow||Brim||ZD70||5||380||8-10||64.8|
|Φ 2.2*11||Open flow||Central shaft||D110||35.5||630||12-13||104.6|
|Φ 2.2*13||Open flow||Central shaft||D110||35.5||630||16-18||114|
|Φ 2.4*13||Open flow||Central shaft||D110||35.5||800||20-23||130.6|
|Φ 2.6*13||Open flow||Central shaft||MFY100||19.5||1000||28-32||158|
|Φ 3*9||Circle flow||Brim||D125||41.2||1000||28-36.5||167|
|Φ 3*11||Circle flow||Central shaft||D140||42.8||1250||36-47||180|
|Φ 3.2*13||Open flow||Central shaft||D140||36.5||1600||45-50||225|
|Φ 3.5*13||Circle flow||Brim||JDX1000||5.84||2000||60-65||275|
|Φ 3.8*13||Open flow||Central shaft||MFY250||16.5||2500||60-62||320|
|Φ 4.2*13||Open flow||Central shaft||JQS3550||15.6||3530||85-87||380|
|Φ 4.6*14||Circle flow||Central shaft||JSL160-C||14.6||4200||120-135||485|
Note: If you're interested in the product, please submit your requirements and contacts and then we will contact you in two days. We promise that all your informations won't be leaked to anyone.
