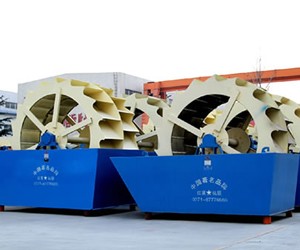

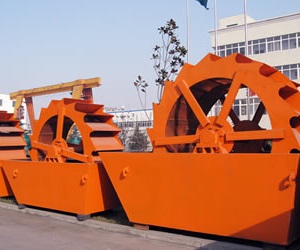

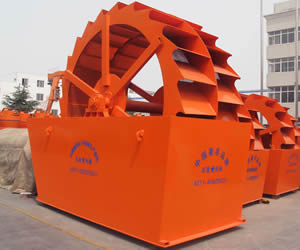

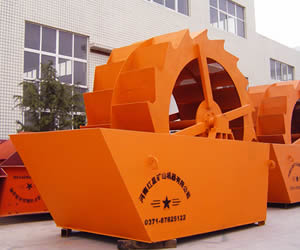

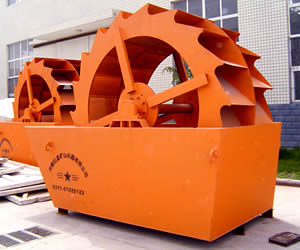

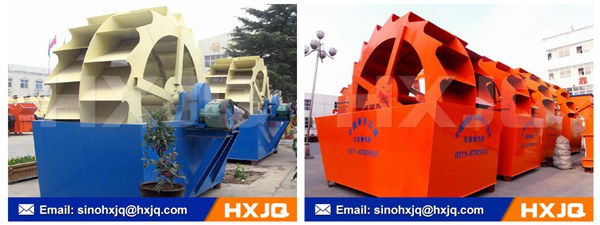

Sand Washer

Application of Sand washer

Sand washer is used for removing dust in sand. It aims at improving the quality of sand. It is especially applicable to wash construction sand and paving sand. Sand washing machine is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station and so on.

Characteristics and advantage

Advantages are: reasonable structure, high efficiency, and little sand loss during washing; the most advantageous factor is that the transmission device isolates with sand and water, which greatly reduces the failure rate. It is the perfect equipment for domestic sand washer industry.

Operating principle of Sand Washing Machine

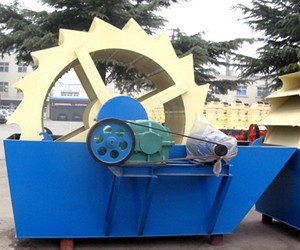

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.

The supplier of China sand washers – Hongxing brand Sand washing equipment

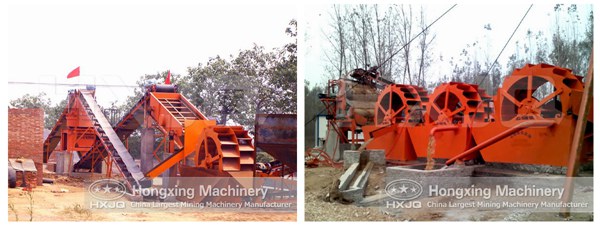

Henan Hongxing is a joint-stock enterprise of Zhengzhou in China which is the professional and famous manufacturer of complete sets of mining equipment, such as Jaw crusher, Impact crusher, Sand maker, Sand washer, Stone crusher and so on. Our sand washing plant: Mineral sand washer, Artificial sand washer or Bucket sand washer all pass ISO9001:2000 with excellent quality and good service.

Technical parameters of Sand washer

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
