Linear vibrating screen
Linear vibrating screen
The vibrating equipment is used to separate the stuff. It is composed of main frame, screen web, electric motor, eccentric bock, rubber spring, coupler and so on .We will offer suitable type according to your requirements.
Click here to get this product and parts' price.
stable operation, lower energy consumption
- Features
- Technical data
The vibrating equipment is used to separate the stuff. It is composed of main frame, screen web, electric motor, eccentric bock, rubber spring, coupler and so on .We will offer suitable type according to your requirements.

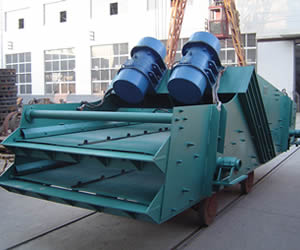

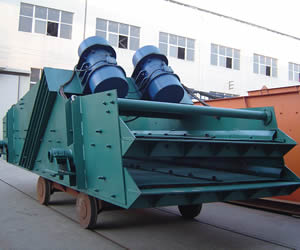

ZSG series of linear vibrating screens are widely applied to screen dry materials in ore dressing, building materials, water and power, light industry and building materials. The advantaged of this series screen are as follows: stable operation, lower energy consumption, low noise, high efficiency and long service life.
.jpg)
Technical parameters of Linear vibrating screen
| Model | Sieve specification(L×W) |
Sieve layer |
Mesh size |
Feeding size |
Processing capacity | Motor power |
Total weight | Vibrating frequency | Double amplitude | Sieve obliquity |
Dimensions (L×W×H) |
| （mm） | （mm） | （mm） | (t/h) | （kw） | （kg） | (Hz) | (mm) | （℃） | (mm) | ||
| ZSG1237 | 3700×1200 | 1 | 4-50 | ≤200 | 10-100 | 5.5×2 | 2250 | 16 | 6-8 | 15 | 3800×2050×1920 |
| 2ZSG1237 | 3700×1200 | 2 | 4-50 | ≤200 | 10-100 | 5.5×2 | 3345 | 16 | 6-8 | 15 | 3800×2050×2200 |
| ZSG1443 | 4300×1400 | 1 | 4-50 | ≤200 | 10-150 | 5.5×2 | 4100 | 16 | 6-8 | 15 | 4500×3040×2500 |
| 2ZSG1443 | 4300×1400 | 2 | 4-50 | ≤200 | 10-150 | 5.5×2 | 4900 | 16 | 6-8 | 15 | 4500×3040×2700 |
| 3ZSG1443 | 4300×1400 | 3 | 4-50 | ≤200 | 10-150 | 5.5×2 | 5870 | 16 | 6-8 | 15 | 4500×3040×2820 |
| 2ZSG1548 | 4800×1500 | 2 | 5-50 | ≤200 | 15-200 | 7.5×2 | 5836 | 16 | 8-10 | 15 | 4800×3140×2814 |
| 3ZSG1548 | 4800×1500 | 3 | 5-50 | ≤200 | 15-200 | 7.5×2 | 6900 | 16 | 8-10 | 15 | 4799×3140×3014 |
| 2ZSG1848 | 4800×1800 | 2 | 5-50 | ≤300 | 50-500 | 7.5×2 | 6489 | 16 | 8-10 | 15 | 4799×3440×2814 |
| 3ZSG1848 | 4800×1800 | 3 | 5-50 | ≤300 | 50-500 | 7.5×2 | 7750 | 16 | 8-10 | 15 | 4799×3440×3014 |
| 4ZSG1848 | 4800×1800 | 4 | 5-50 | ≤200 | 50-500 | 11×2 | 8300 | 16 | 8-10 | 15 | 4799×3440×3503 |
| 2ZSG1860 | 6000×1800 | 2 | 5-150 | ≤300 | 80-600 | 11×2 | 9950 | 16 | 8-10 | 15 | 6000×3440×3326 |
Note: If you're interested in the product, please submit your requirements and contacts and then we will contact you in two days. We promise that all your informations won't be leaked to anyone.
