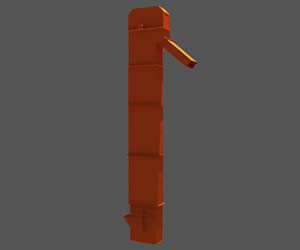

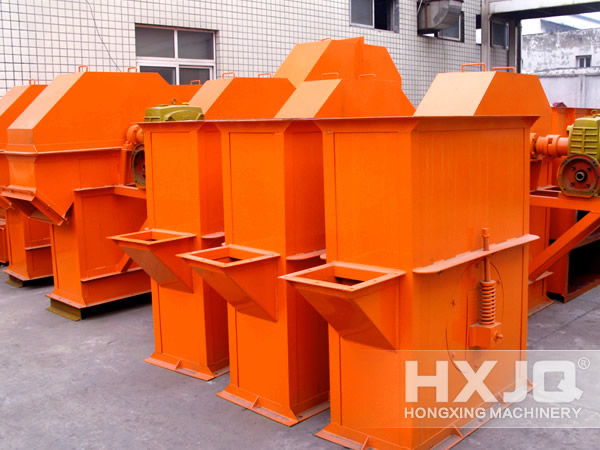

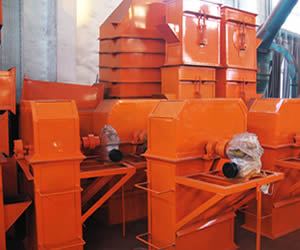

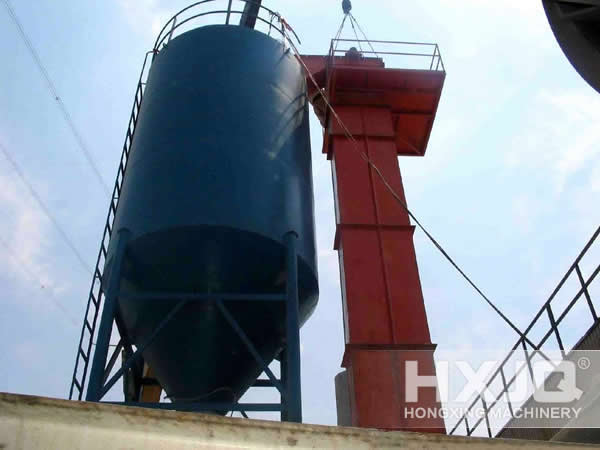

Bucket elevator
Bucket elevator
The machine has the advantages of big conveying capacity, high hoisting height, stable and reliable running and long service life. Performance and parameter are in accord with JB3926—85 ‘Vertical Bucket Elevator’, which consults the international standard and advanced foreign standard and the towing circle chain is in accord with MT36—80 ‘High-Strength Circle Chain for Mine’.
Click here to get Bucket elevator and parts' price.
conveying the powder, grain and block materials
- Features
- Technical data
The machine has the advantages of big conveying capacity, high hoisting height, stable and reliable running and long service life. Performance and parameter are in accord with JB3926—85 ‘Vertical Bucket Elevator’, which consults the international standard and advanced foreign standard and the towing circle chain is in accord with MT36—80 ‘High-Strength Circle Chain for Mine’.
The machine is applicable for conveying the powder, grain and block materials, such as coal, cement, block, sand, clay and ore. The bucket elevator is allowed to convey materials with high temperature when armed with special circle chain structure.
Technical parameters of bucket elevator
Technical parameters of ring chainbucket elevator
| Specification | Max.lifting height (m) |
Conveying capacity (m³/h) |
Max.size (mm) |
Pitch of buckets (mm) |
Motor prower （kw） |
| TH160 | 25 | 7-12 | 15-20 | 400 | 3-4 |
| TH200 | 28 | 8-15 | 20-30 | 500 | 3-5.5 |
| TH250 | 30 | 10-25 | 25-35 | 500 | 4-7.5 |
| TH300 | 30 | 25-35 | 30-40 | 500 | 5.5-11 |
| TH315 | 40 | 30-40 | 35-45 | 512 | 5.5-15 |
| TH400 | 40 | 45-60 | 40-55 | 512 | 11-22 |
| TH500 | 40 | 65-80 | 50-60 | 512 | 15-30 |
| TH630 | 40 | 100-120 | 60-65 | 688 | 18.5-37 |
| TH800 | 40 | 130-150 | 65-75 | 920 | 22-45 |
Technical parameters of wire belt bucket elevator
| Specification | Max.lifting height (m) |
Conveying capacity (m³/h) |
Max.size (mm) |
Bucket Volume (L) |
Motor prower （kw） |
| TDG160 | 80 | 34 | 0-20 | 2.6 | 2.2-11 |
| TDG200 | 80 | 45 | 0-25 | 4.1 | 3-15 |
| TDG250 | 80 | 71 | 0-30 | 6.5 | 5.5-22 |
| TDG315 | 80 | 101 | 0-35 | 10 | 7.5-30 |
| TDG400 | 80 | 158 | 0-40 | 16 | 15-45 |
| TDG500 | 80 | 218 | 0-45 | 25 | 18.5-55 |
| TDG630 | 80 | 345 | 0-50 | 40 | 30-90 |
| TDG800 | 80 | 491 | 0-50 | 61 | 45-132 |
Plate chain bucket elevator
| Specification | Max.lifting height （m） |
Max.lifting capacity （m³/h） |
Percentageallowed （%） |
Pitch （mm） |
Motor power （kw） |
||||
| 10 | 25 | 50 | 75 | 100 | |||||
| Max.size（mm） | |||||||||
| NE15 | 40 | 16 | 65 | 50 | 40 | 30 | 25 | 101.66 | 1.5-4 |
| NE30 | 59 | 31 | 90 | 75 | 58 | 47 | 40 | 152.4 | 2.2-7.5 |
| NE50 | 62 | 60 | 90 | 75 | 58 | 47 | 40 | 152.4 | 3-15 |
| NE100 | 58 | 110 | 130 | 105 | 80 | 65 | 55 | 200 | 7.5-30 |
| NE150 | 65 | 170 | 130 | 105 | 80 | 65 | 55 | 200 | 11-37 |
| NE200 | 73 | 220 | 170 | 135 | 100 | 85 | 70 | 250 | 18.5-75 |
| NE300 | 61 | 320 | 170 | 135 | 100 | 85 | 70 | 250 | 22-75 |
| NE400 | 47 | 420 | 205 | 165 | 125 | 105 | 90 | 300 | 45-90 |
| NE500 | 58 | 500 | 240 | 190 | 145 | 120 | 100 | 300 | 45-132 |
Note: If you're interested in the product, please submit your requirements and contacts and then we will contact you in two days. We promise that all your informations won't be leaked to anyone.
